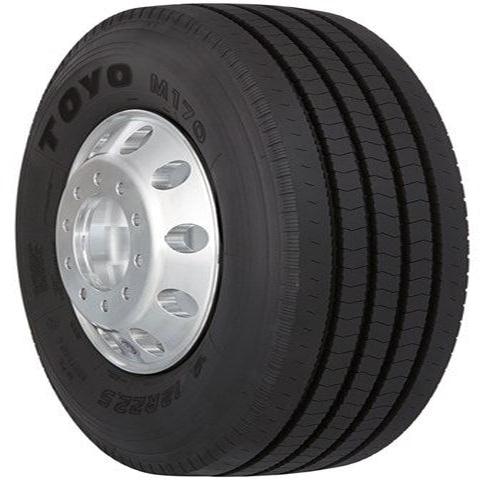

9R22.5 - TOYO M170 | STEER/ALL-POSITION | 12PLY

The Toyo M170 is a regional and urban steer position tire designed for demanding operations. This tire offers excellent even wear for maximum removal mileage. Stone drilling is prevented at low speeds by the V-shaped groove design which ejects packed stones and the high-elongation top belt protects the tire’s casing. The E-balance minimizes growth of the tread profile giving the tire a flatter tread radius and maintains uniformity for the life of the casing. This tire minimizes fuel consumption with its low rolling resistance construction. The E-balance offers an optimal footprint to improve wear and increase mileage performance. The long and even wear of this tire is further enhanced by the wide five-rib pattern with a solid outer rib that optimizes tread depth.

Features and Benefits

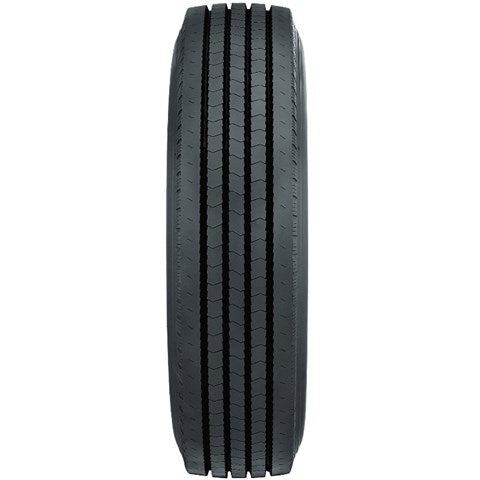

• Excellent Removal Miles: E-balance provides optimum footprint wear to increase mileage performance. Wide five-rib pattern with a solid outer rib and optimized tread depth combine for long, even wear.
• High Fuel Efficiency: Low-rolling-resistance construction minimizes fuel consumption.
• Excellent Retreadability and Casing Durability: E-balance profile minimizes growth of the tread profile and maintains a uniform and flatter tread radius for the entire life of the casing. High-elongation top belt protects casing integrity. V-shaped groove design ejects packed stones at low speeds to prevent stone drilling.

Specifications

• Supplier # 546030
• Product # 546030Z #190002416
• Size 9R22.5/12
• Ship Weight (lbs) 86.40
• Load/Speed 133/131L
• Ply 12
• Seasonal Designation N
• Sidewall Black Wall
• Load Range F
• Max Load Dual (lbs) 4300@105
• Max Load Single (lbs) 4540@105
• Max Tire Pressure (PSI) 105
• Overall Diameter (in) 38.2
• Rim Width Max (in) 7.5
• Rim Width Min (in) 6
• RPM 544
• Ship Weight 86.40
• Studdable N
• Tread Depth (32nds) 17.3
