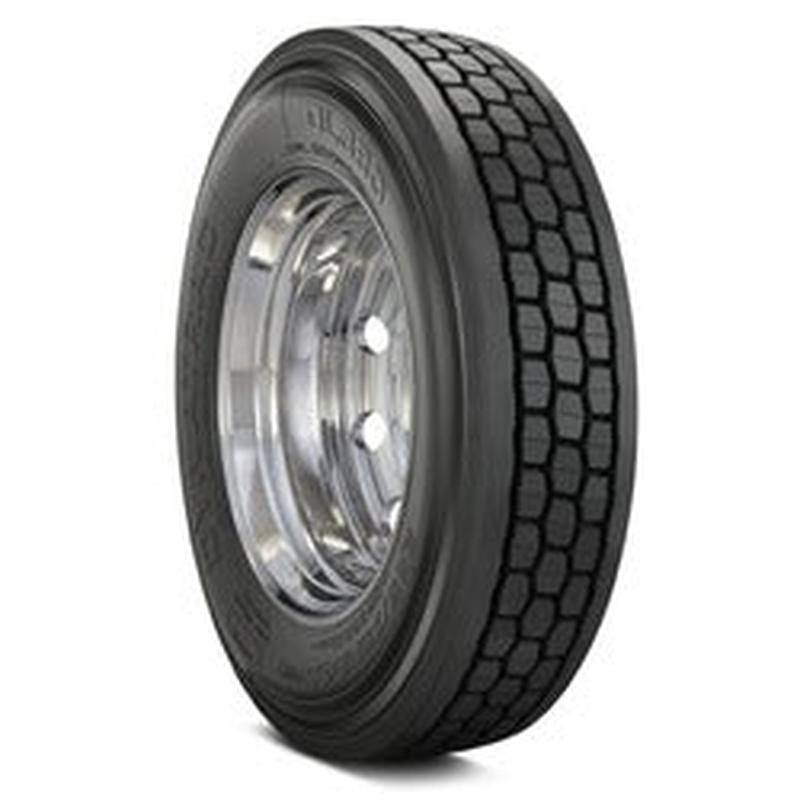

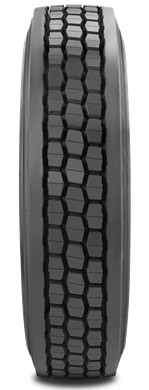

11R22.5 - DYNATRAC DL380 | CLOSED-SHOULDER DRIVE | 16PLY

The Dynatrac DL380 is a closed shoulder drive tire designed to provide maximum traction and durability for your truck. This tire features a closed and wide shoulder design that promotes even wear and stability, while variable angle grooves help minimize torque and stress cracking. With 3D sipes that lock together under compression, the DL380 offers the stability of a solid block. Its aggressive center lugs ensure excellent traction in both wet and dry conditions throughout the life of the tread.

Features and Benefits

• Closed and Wide Shoulder Design: Promotes even wear and enhances lateral stability.
• Variable Angle Grooves: Minimize torque and stress cracking.
• 3D Sipes: Lock together under compression for block stability.
• Aggressive Center Lugs: Improve traction in wet or dry conditions.

Performance Promise

The DL380 comes with a 72-month Limited Protection Policy against defects in workmanship or material from the date of purchase.

DL380 Workmanship & Materials

If this tire becomes unserviceable due to a flaw in workmanship or materials, we will replace it at no charge during the first 50% of tread life.

DL380 Casing Allowance & Retreads

Tires carry a casing allowance for 2 retreads.

Specifications

• Item # 96058
• Size 11R22.5/16
• Load/Speed 148/145 - L
• Ply Rating H
• Min Rim Width (in) 7.50
• Max Rim Width (in) 8.25
• Tread Depth (32nds) 30.0
• Weight (lbs) 130.00
• Overall Diameter (in) 41.99
• Section Width (in) 11.00
• Max Load Single (lbs/psi) 6940@123
• Max Load Dual (lbs/psi) 6395@123
• RPM 495
