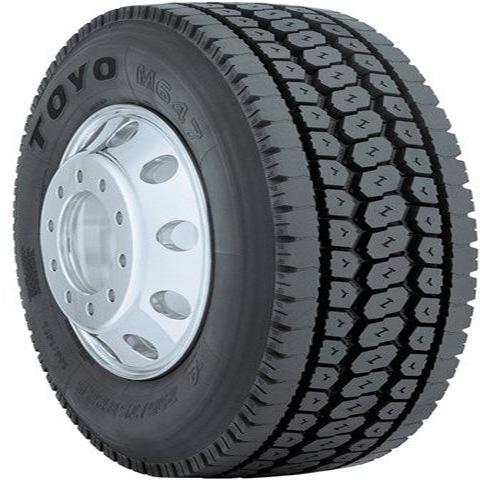

295/75R22.5 - TOYO M647 | CLOSED-SHOULDER DRIVE | 14PLY

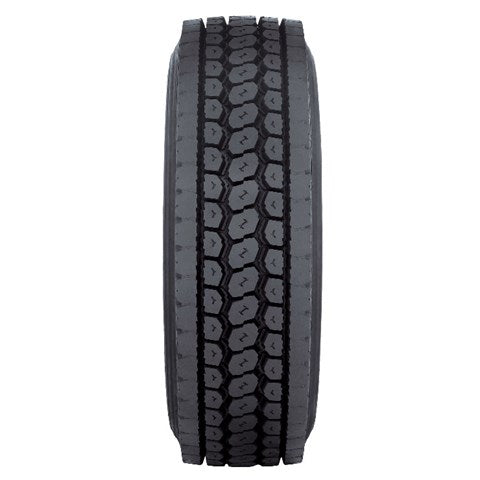

The M647 is Toyo’s highest-mileage drive tire, designed for urban to long-haul operations where tread wear is a key concern. With a deep tread depth, this tire ensures maximum removal miles, making it the drive tire of choice for various applications. Excellent miles per 32nd and minimal irregular wear result in a lower cost per mile for urban, regional, and long-haul vehicles. The four-groove tread design and optimized void ratio contribute to high mileage, while the high-rigidity shoulder reduces edge wear, preventing early removal. Deep-groove siping ensures wet traction until the tire is worn out, enhancing performance and safety.

Specifications

• Tire Size 295/75R22.5
• Load / Speed 144/141L
• MPH 75
• Ply Rating 14
• Load ID G
• Approved Rim Width Range (in.) 8.25-9.00
• Tread Depth (1/32") 30
• Product Code 558300
• Weight (lbs.) 120
• Inflated Overall Diameter (in.) 40.9
• Inflated Overall Width (in.) 11.1
• Static Loaded Radius (in.) 19.0
• Static Loaded Width (in.) 12.1
• Max Load Single (lbs/psi) 6175/110
• Max Load Dual (lbs/psi) 5675/110
• Revs Per Mile 507
