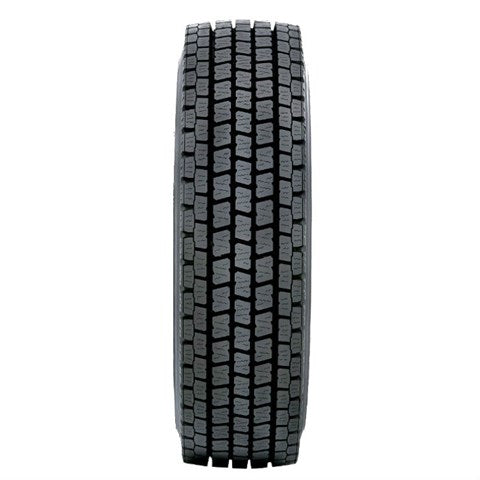

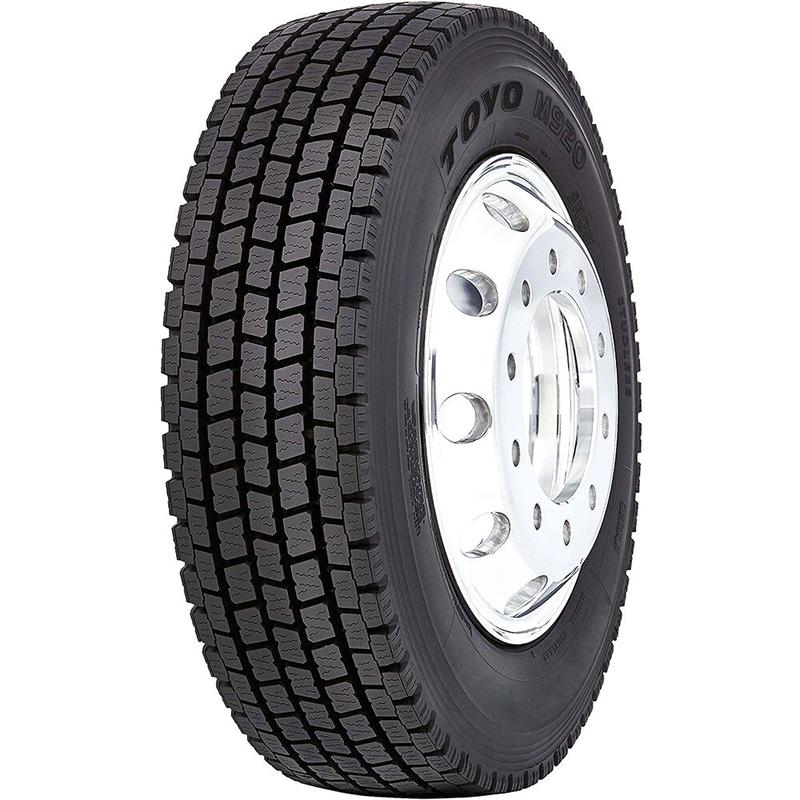

11R22.5- TOYO M920A | REGIONAL SERVICE DRIVE | 16PLY

Product Description

The M920A delivers superb all-weather traction and high mileage for year-round use in Long-Haul, regional, and urban operations. This unique tire features a Three-Peak Mountain Snowflake plus a wider tread width for even load distribution and improved stability. The deep tread ensures maximum mileage on pickup and delivery vehicles, while an N-speed rating matches OE specifications. Computer-optimized design, all-weather traction, and high mileage make the M920A the leading tire for pickup and delivery vehicles.

FEATURES AND BENEFITS

MAXIMUM REMOVAL MILES

• Deep tread depth delivers maximum miles.
• E-balance provides optimum footprint wear to increase mileage performance.
• Wider tread width provides even load distribution, improved stability, and excellent profile retention.
• Super-thin sipes decrease block movement under driving and braking conditions to deliver more even wear.

SUPERIOR ALL-WEATHER PERFORMANCE

• Three-Peak Mountain Snowflake qualified for severe snow conditions.
• Optimized staggered shoulder blocks provide exceptional all-weather traction.
• Cross-sipe arrangement maintains block stiffness to provide traction throughout the life of the tire.

EXCELLENT CASING DURABILITY

• E-balance profile minimizes growth of the tread profile and maintains a uniform and flatter tread radius for the entire life of the casing.
• Stone ejectors in all major grooves prevent casing damage.

The Toyo M 920A 11R22.5 G/14PLY Tires is a Commercial Truck - Steer tire. Manufacturer part number: 540090. The Toyo M920A is designed for Long-Haul, regional, and urban operations with excellent all-weather performance and high mileage. Its deep tread ensures long-lasting performance and maximum removal miles. The Three-Peak Mountain Snowflake qualification guarantees superior traction in severe snow conditions, while the E-balance profile and stone ejectors protect the tire's casing for a longer service life. The optimized tread design and wider tread width provide even load distribution, improved stability, and excellent traction throughout the tire's life.

Specifications

• TIRE SIZE 11R22.5
• LOAD / SPEED 146/143L
• MPH 75
• PLY RATING 16
• LOAD ID H
• APPROVED RIM WIDTH RANGE (IN.) 7.50-8.25
• TREAD DEPTH (1/32") 27
• PRODUCT CODE 540090
• WEIGHT (LBS.) 128
• INFLATED OVERALL DIAMETER (IN.) 41.9
• INFLATED OVERALL WIDTH (IN.) 11.1
• STATIC LOADED RADIUS (IN.) 19.5
• STATIC LOADED WIDTH (IN.) 12.1
• MAX LOAD SINGLE (LBS/PSI) 6610/120
• MAX LOAD DUAL (LBS/PSI) 6005/120
• REVS PER MILE 495
