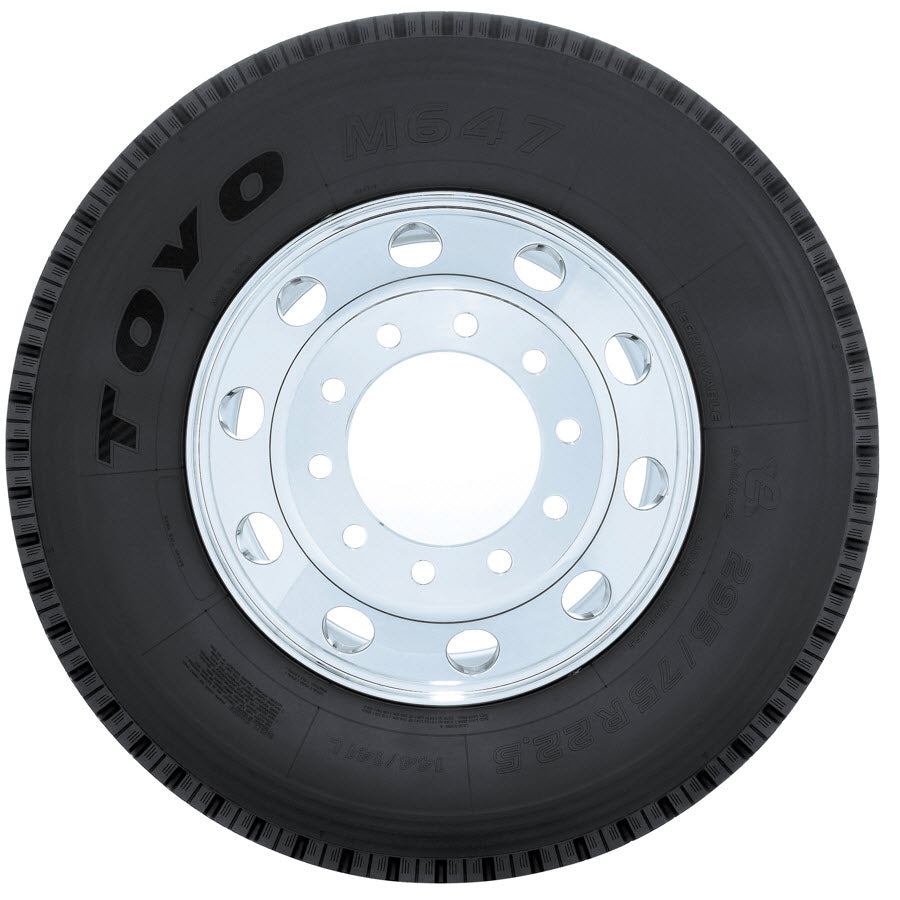

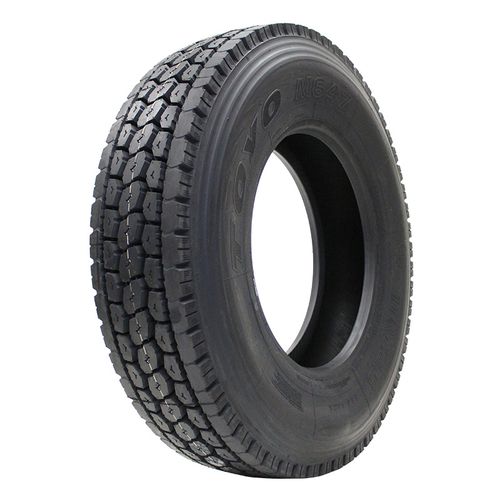

285/75R24.5 - TOYO M647 | REGIONAL DRIVE | 14PLY

The M647 is Toyo’s highest-mileage drive tire. Its deep tread depth is ideal for urban to Long-Haul operations, where tread wear is the primary reason tires are removed from service. Excellent miles per 32nd, combined with minimal irregular wear, make it the drive tire of choice in multiple applications. These benefits result in a lower cost per mile for urban, regional, and Long-Haul vehicles.

M647 285/75R24.5

Application:

• Recommended: Drive
• Suitable: Long-Haul, Regional, Urban

Key Features & Benefits:

• Exceptional Removal Miles: Deep tread depth delivers maximum miles. E-balance provides optimum footprint wear to increase mileage performance.

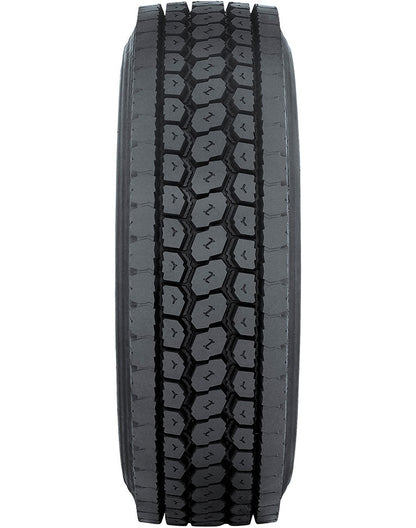

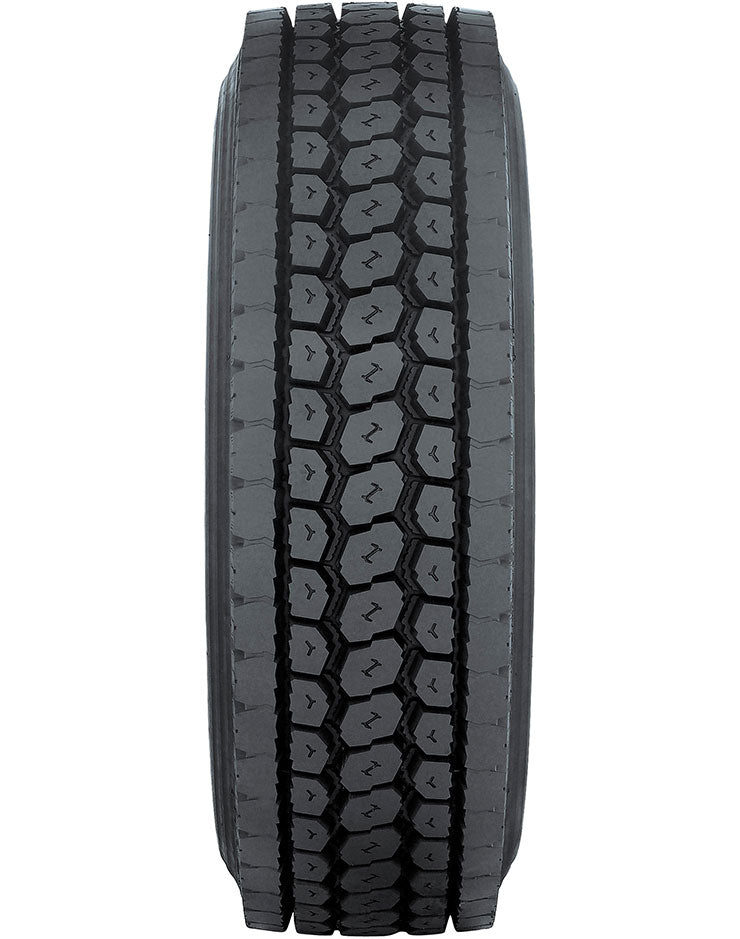

• Four-Groove Tread Design: Combined with an optimized void ratio, contributes to high mileage and durability.
• High-Rigidity Shoulder: Reduces edge wear to prevent early removal.
• Excellent Performance and Safety: Deep-groove siping equal to main groove depth ensures wet traction until worn out.
• Maximum Retreadability and Casing Durability: E-balance profile minimizes growth of the tread profile and maintains a uniform and flatter tread radius for the entire life of the casing.

Specifications

• Supplier # 558160
• Product # 558160
• Size 285/75R24.5/14
• Ship Weight (lbs) 125.65
• Load/Speed 144/141L
• Ply Rating 14
• Seasonal Designation N
• Sidewall Black Wall
• Load Range G
• Max Load Dual (lbs) 5675@110
• Max Load Single (lbs) 6175@110
• Max Tire Pressure (PSI) 110
• Overall Diameter (inch) 42.1
• Rim Width Min (inch) 8.25
• Rim Width Max (inch) 8.25
• RPM 494
• Studdable N
• Tread Depth (32nds) 29.7
