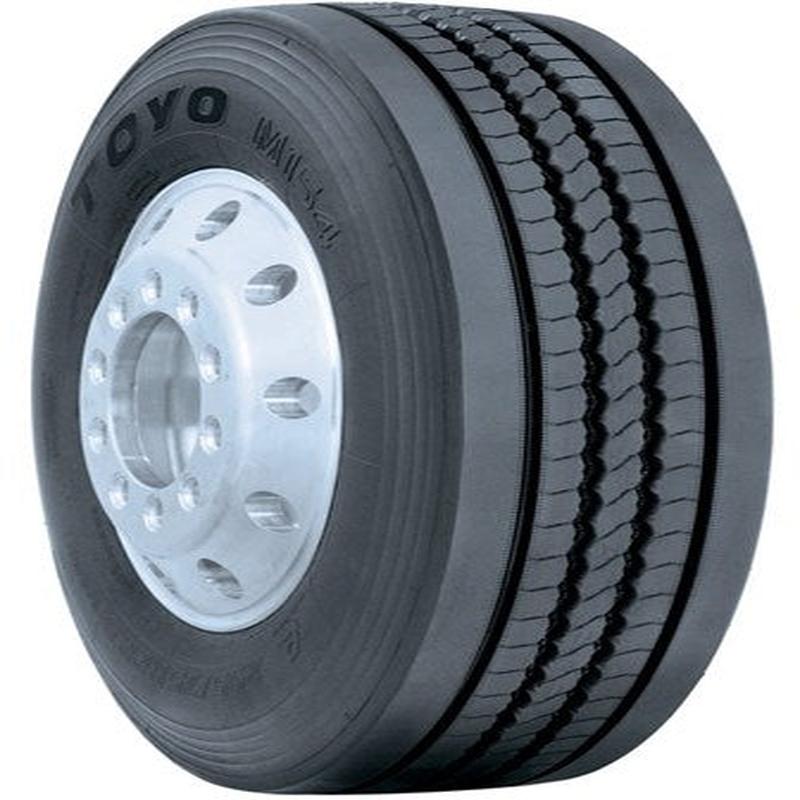

11R22.5 - TOYO M154 | URBAN ALL-POSITION | 16PLY

The M157 is a free-rolling axle tire designed for operations running high miles per 32nd, from which tires are typically pulled prematurely due to irregular wear. Designed as a fuel-efficient, free-rolling axle tire, it is acceptable for steer axle use. The high miles per 32nd, with minimized irregular wear, results in maximum removal miles.

Features and Benefits

• Maximum Removal Miles: Optimized tread depth with top decoupler groove is engineered to reduce free-rolling wear and tread squirm, delivering the highest miles per 32nd.
• Maximum Fuel Efficiency: Industry-leading, low-rolling-resistance tread compound minimizes fuel consumption and qualifies it as a SmartWay-verified steer tire.
• Excellent Performance and Safety: Computer-optimized tread design, with four straight grooves, deep sipes, and multi-pitch grooves, provides enhanced wet and dry traction while also reducing road noise.
• Exceptional Retreadability and Casing Durability: E-balance profile minimizes growth of the tread profile and maintains a uniform and flatter tread radius for the entire life of the casing. Enhanced, high-speed casing design resists casing fatigue. High-elongation top belt protects casing integrity. Four-steel-belt construction contributes to casing durability.

Specifications

• Tire Size 11R22.5
• Load / Speed 146/143L
• MPH 75
• Ply Rating 16
• Load ID H
• Approved Rim Width Range (in.) 7.50-8.25
• Tread Depth (1/32") 22
• Product Code 548310
• Weight (lbs.) 123
• Inflated Overall Diameter (in.) 41.5
• Inflated Overall Width (in.) 11.1
• Static Loaded Radius (in.) 18.7
• Static Loaded Width (in.) 12.1
• Max Load Single (lbs/psi) 6610/120
• Max Load Dual (lbs/psi) 6005/120
• Revs Per Mile 500
